Correct-by-construction Cryptographic Hardware via Explicit Staging Transformations
Correct-by-construction Cryptographic Hardware via Explicit Staging Transformations* HCSS 2024: Program Transformation Theme Bill Harrison & Yakir Forman Two Six Technologies Cryptographic algorithms are generally speci ed in detailed design documents (e.g, Blake [4] or Salsa20 [1]) including pseudocode for the algorithms themselves. The approach we present in this talk starts from these informal C-style pseudocodes reflected into Haskell and transforms them semi-automatically into formally veri ed hardware implementations. We use staging annotations [5, 3] to partition the Haskellized algorithm temporally into distinct \pipeline" phases. (1) (3) (5) (2) (4)

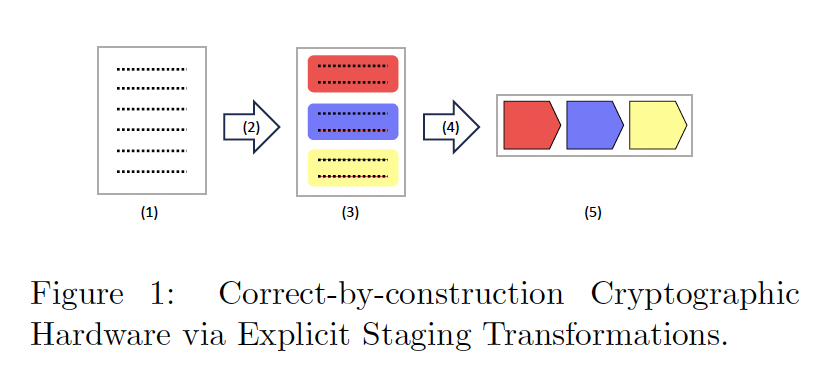

Figure 1 illustrates the transformation pro- cess from pseudocode to veri ed hardware. From a Haskell rendering of the imperative pseudocode (1), we introduce staging anno- tations (2) that partition the rendering temporally into distinct phases (3). The annotated rendering is now a ReWire program, where ReWire is a functional high-level synthesis language embedded in Haskell. The ReWire compiler (4) translates this annotated design directly into Verilog and thence to gates (5). We use a previously developed ReWire formalization [2] to verify correctness. Although staging annotation (step (3)) is performed manually, it is straightforward as we illustrate in several non-trivial examples. The staging annotations themselves are ReWire functions with simple semantics, and, hence, relating the initial Haskell rendering (1) to the ReWire hardware design (3) is also straightforward.
